Products

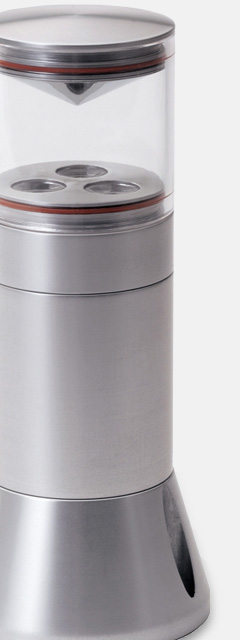

Tecnoilluminazione luminaires consist of a container housing one or more light sources (LEDs) and a system of lenses to control and concentrate the light.

They emit concentrated light and use either complex flat lenses to produce a narrow beam of light with relatively clear-cut edges, or Fresnel lenses to emit a wider beam of light with much softer edges and a luminous centre which attenuates gradually.

White LED with cool or warm colour temperature, RGB LED and Full Colour RGB are selected with the maxim luminous flux available in the market:

• Cree XR-E powered at 700mA
• Cree MC-E Multi chip powered up to 500mA
• Citizen CL-L102 powered at 350mA
• Seoul Z-Power P5 RGB Full Colour powered at 350mA.

The materials used are: anticorodal aluminium alloy, UNI 9006/1 (ex 6060) and UNI 9006/4 (ex 6082), 20 micron anodising and polymethyl methacrylate (PMMA); AISI 316 and AISI 304 stainless steel.

LED luminaires degree of protection:

• IP40 for indoor applications
• IP65/IP67 for outdoor applications
• IP68 for pools and fountains
